Pilgrim presents the MorPress Pump Range, an elite selection of pumps celebrated for their durability and ease of use. These pumps are engineered to ensure the safe and accurate installation of your hydraulic products. With three simple choices—Hand, Air, or Electric Driven Pumps—you can effortlessly select the perfect pump using the Pump Selector Guide. Moreover, Pilgrim offers a range of hydraulic accessories to seamlessly integrate with your chosen pump, removing uncertainty for your installation experience.

Benefits

Choice

The MorPress range comes with three delivery options to suit the budget.

Easy

Operator friendly and built with the purpose to aid installation of the Pilgrim range.

Cost saving

We understand that the environment for pumps can be harsh. Our design and product quality ensures an extended life.

Quality

The MorPress range uses the best quality components to ensure a highly durable and reliable pump unit.

How it Works

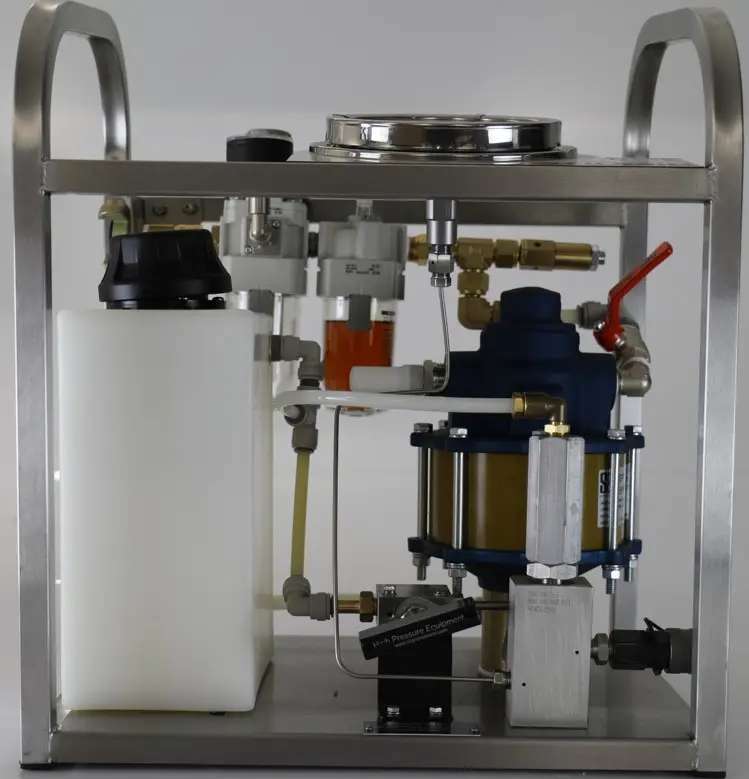

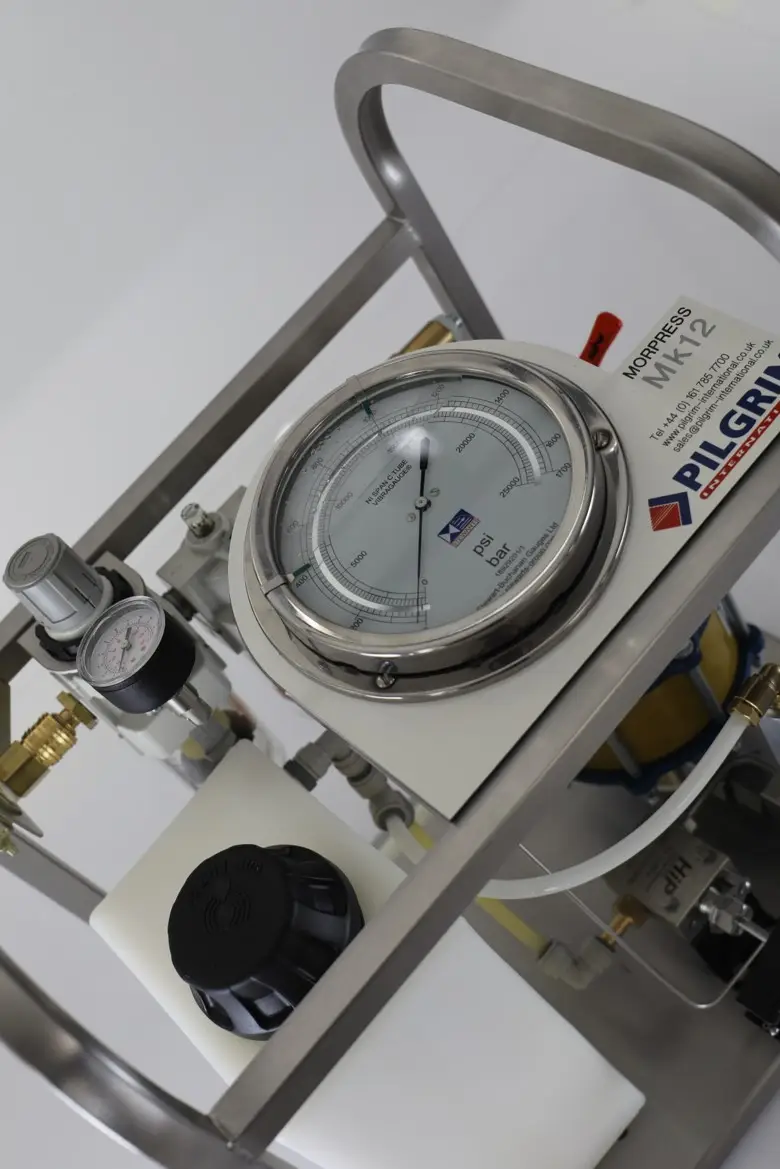

Mk12 Air Driven Pump Range

Lightweight efficient, compact and easy to operate,  providing instant and totally reliable hydraulic power. Utilizes a low pressure air supply to generate a high pressure output. This is achieved by means of a simple differential area system in which a large area air piston at low pressure produces high pressure on a small hydraulic piston. Simple air controls enables the pump to provide any intermediate pressure required within the limits of the pump output range. Both oil and air are filtered prior to entering the system. The pump requires only two connections, one to the air supply, the other to the hydraulic output.  Simple and safe quick connect couplings and high pressure flexible hoses are used to connect the equipment being used.

Features
  • Air pressure regulator
  • Air pressure gauge
  • Air filter
  • Air lubricator
  • On/off control valve
  • Oil reservoir

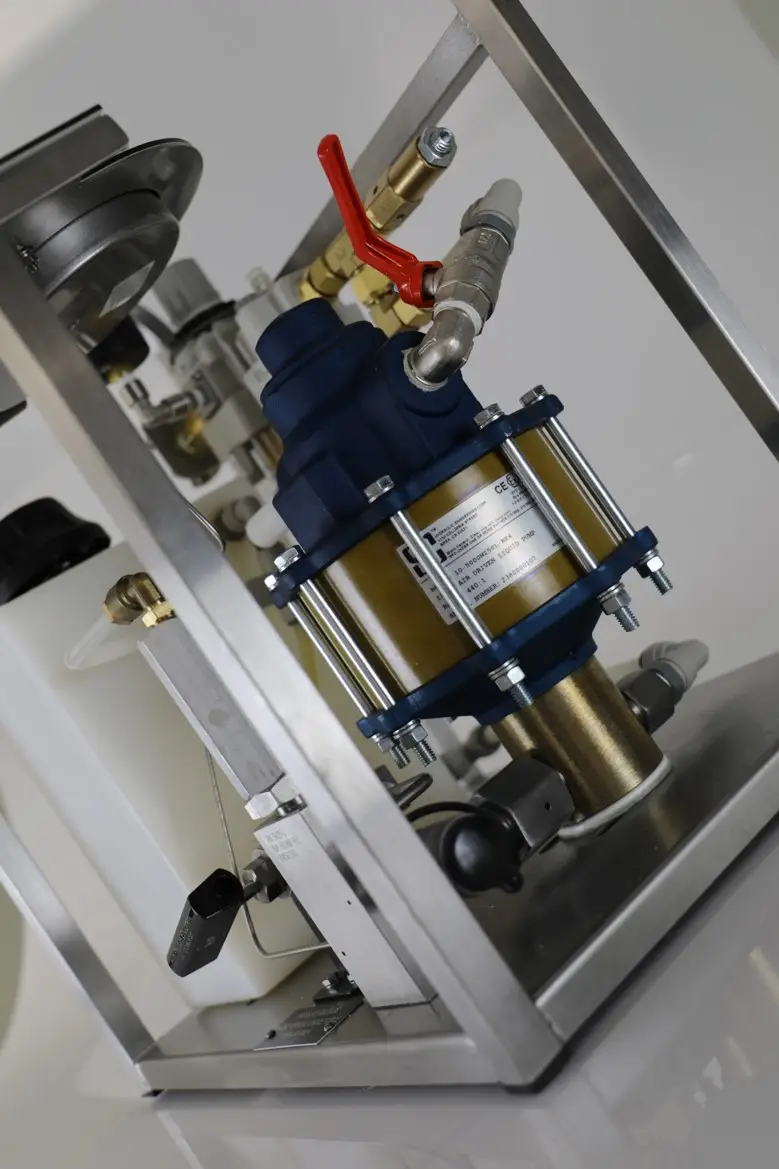

  • Air/Oil intensifier unit
  • Oil return to tank valve
  • Pressure relief safety valve
  • Oil filled pressure gauge with damping

Electric Operated Mk 12 pump is also available

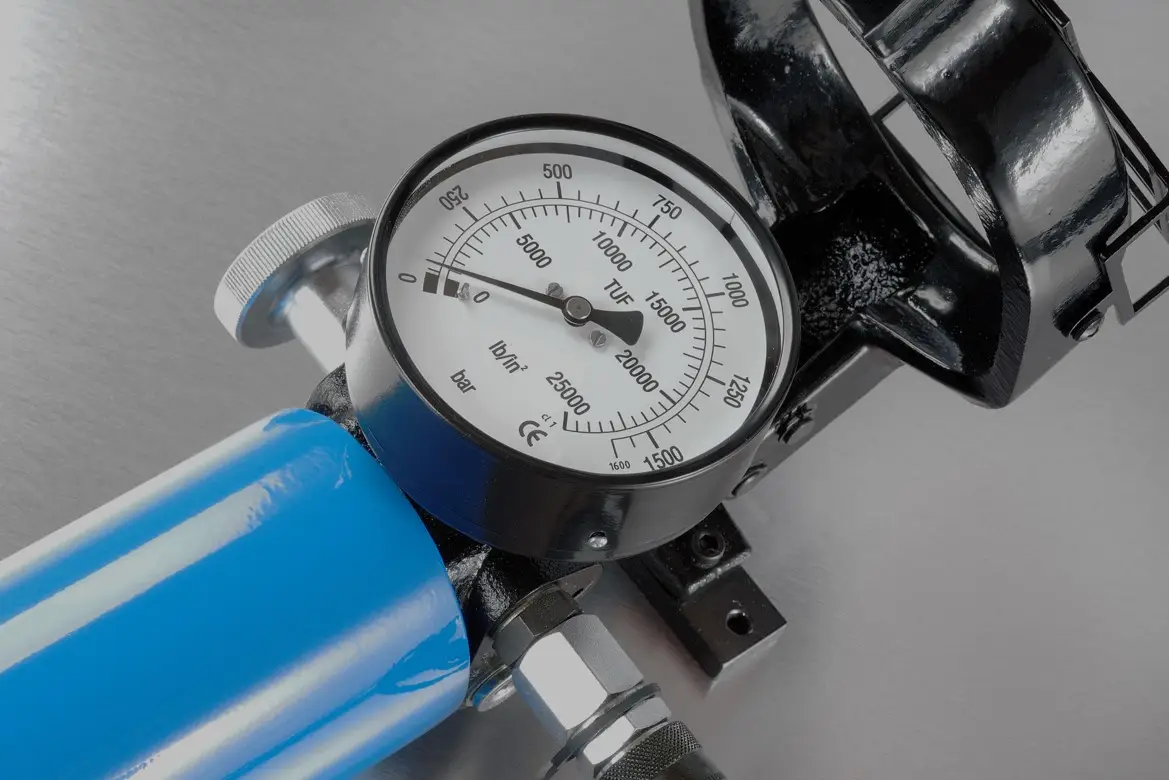

MorPress Hand Pump

Portable, rugged and precise, the hand pump is suitable for installations where access, site conditions or lack of a suitable compressed air supply / electricity precludes the use of the Mk12 pumps.

MorPress 2-stage hand pump is available with a maximum working pressure of either 1600 bar or 2400 bar. The compact, rugged construction and the use of high quality components ensures long, reliable and trouble free operation. Normally supplied with a quick connect coupling on the pump outlet and suitable hose assembly, the

The hand pump provides fast, reliable and convenient portable hydraulic power.
