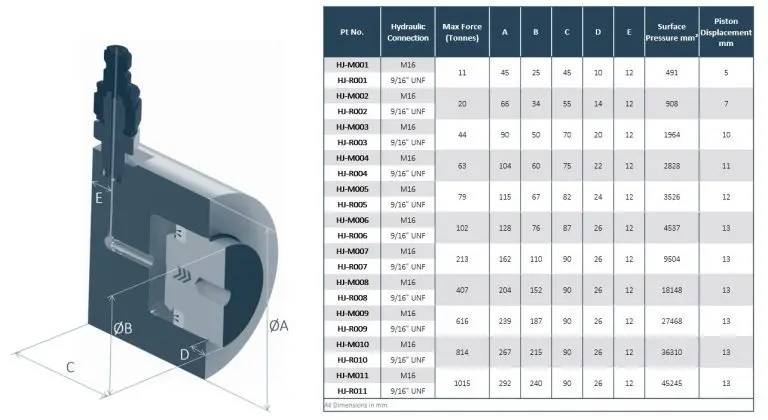

This hydraulic cylinder, crafted from high-strength steel, stands as a testament to durability and precision engineering. Its compact design makes it an indispensable asset in restricted spaces, where its performance remains uncompromised. The maximum load capacities, detailed below, attest to its formidable strength and reliability: developed by applying an oil pressure of 2,200 bar (32,000 lbf/in²).
Safe and operator friendly with visible max extension marker on the cylinder piston. Optional side hydraulic inlet.
High lifting capacity for a low profile unit. Making it ideal of tight spaces.
Operates in both horizontal and vertical axis.
To install the hydraulic cylinder, first position it correctly and then connect the hydraulic power using the provided quick connect. Begin building hydraulic pressure with a Mk12 pump until the visual limit indicator marker is visible. Secure the hydraulic power by turning off the valve on the pump. Proceed with the necessary task, and once completed, release the pressure to reset the piston to its starting position.
